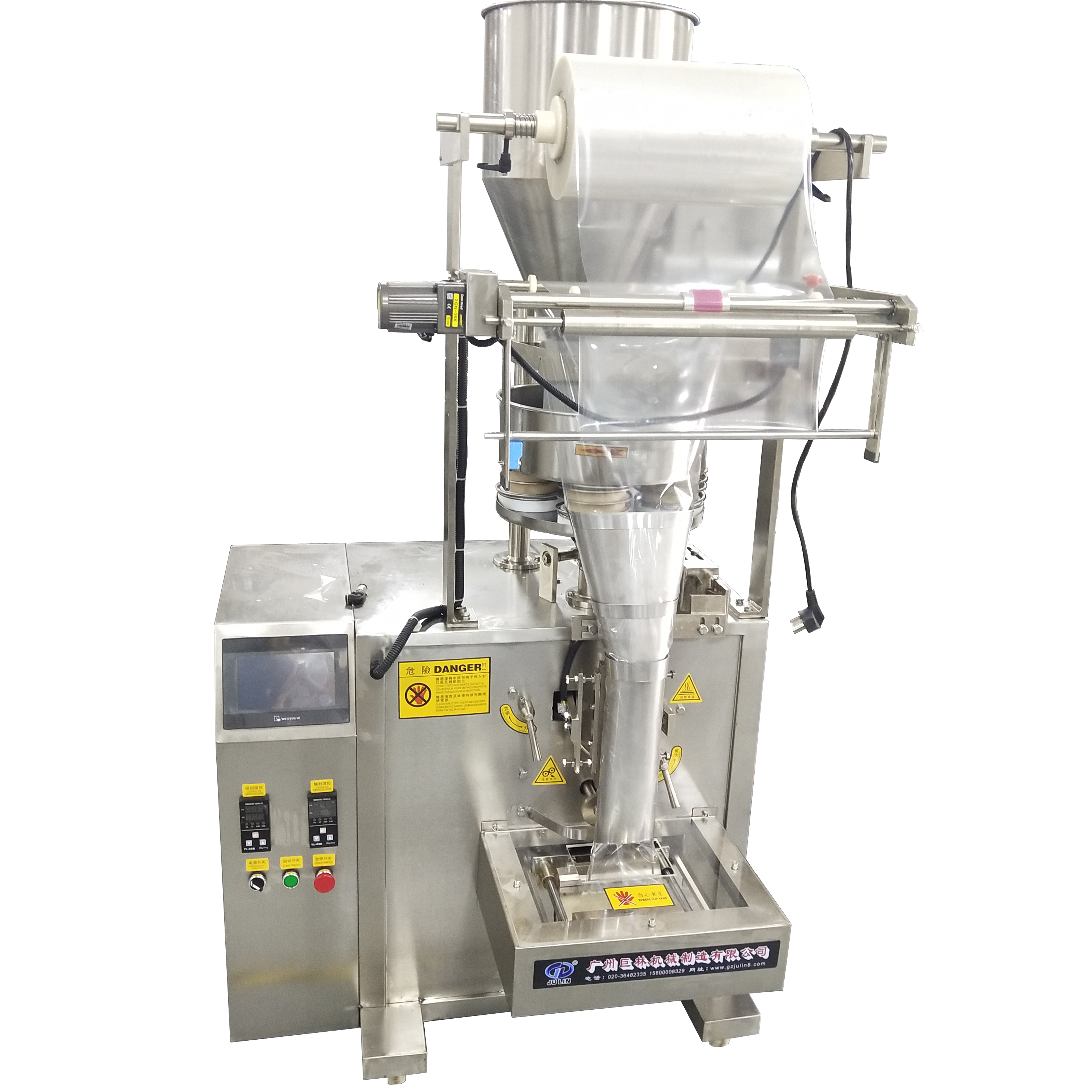

  • 自动颗粒包装机JL-320

  • 自动颗粒包装机JL-320
  • 【自动颗粒包装机JL-320 】详细信息



  • 背封,三边封,四边封包装形式

    包装运行数据及调节在显示屏上直观显示,直接操作

    装配光电控制装置保证包装袋图案完整

    自动完成制袋,计量,充填,封合,断切,计数,打印批号

    壳体及物料接触部位使用不锈钢材料
    Back sealing, three-side sealing, four-side packing method
    The packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
    Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
    It can automatically finish making-bag, metering, filling, sealing, cutting, counting
    and printing batch number.
    The body and the parts touching the material are made of stainless steel.

    适合物料 Suitable material

    食品,医药,化工,种子,日化行业松散状无粘性颗粒物料
    It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
    non-sticking granule daily chemical industry.

    技术规格



    型号

    JL-320

    制成袋长mm

    50-200

    制成袋宽mm

    25-150

    包装薄膜宽度mm

    60-320

    包装容量ml

    5-100

    包装速度bags/min

    35-70

    功率Kw

    2.2

    耗气量L/min

    100

    外形尺寸mm

    1060×980×1800

    整机质量Kg

    300
